Hatch Cover Chain

Name: Hatch Cover Chain
Brand: Zhongyuan Marine Equipmen
Price: 1 USD

Brand Name : Zhongyuan Marine Equipmen

Model Number : Standard or Customized

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Place of Origin : China

MOQ : 1 Unit

Price : Based on quotation

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Delivery Time : Based on project requirements

Packaging Details : Export standard pallet or customized packing

Type : Hatch Board Chain

Material : Carbon Steel etc

Surface Treatment : Black Painted

Structure : Flash Butt Welded Chain

Feature : Heat Resistant

Color : Black etc

Chain Size : 11mm to 30mm

Usage : Drag Chain

Contact Now

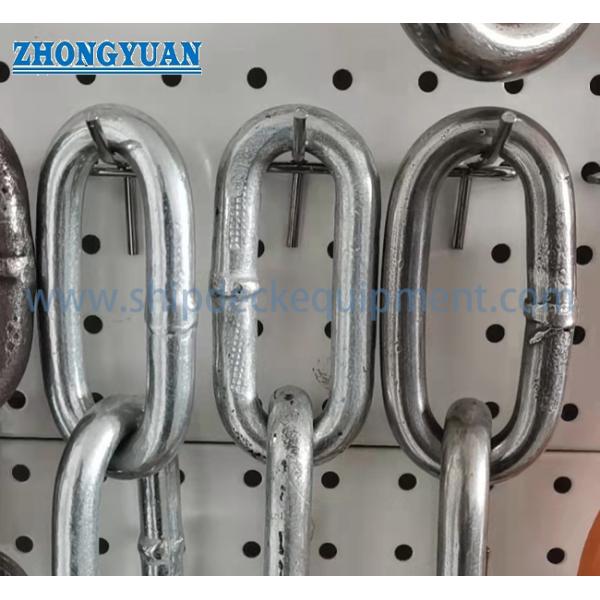

Hatch cover Chain

Description:

The hatch cover chain can be used as a drag hatch cover. It can be transported in wooden boxes or cartons or drums and pallets. It can be customized according to needs. Generally speaking, there are various sizes of 11mm-30mm, which has passed the ISO9001:2008 quality system certification.

Main Technical Specifications:

Type:Hatch Board Chain
Material:Carbon Steel etc
Surface Treatment:Black Painted
Structure:Flash Butt Welded Chain
Feature: Fire Resistant
Chain Size:11mm to 30mm
Color:Black etc
Usage:Drag Chain

Main Technical Parameters:

Diameter	Inside Length	Outside Width	Proof Load	Breaking Load	Approx Weight
mm	mm	mm	kN	kN	kg/m
11	43	12.5	57	116	2.39
14(A)	50	17	97	194	3.95
14(B)	42	18	97	194	4.32
15	42	21	106	212	5.2
16(A)	55	22	128	254	5.34
16(B)	55	18	128	254	5.29
18(A)	54	24	161	322	7.12
18(B)	64	25	161	322	6.32
19	57	24	164	330	7.6
20(A)	60	22	129	359	9.5
20(B)	62	22	179	359	8.57
22(A)	78	31	240	480	9.86
22(B)	86	30	240	480	9.24
22(C)	66	31	240	480	10.6
30	108	35	399	798	18.22
